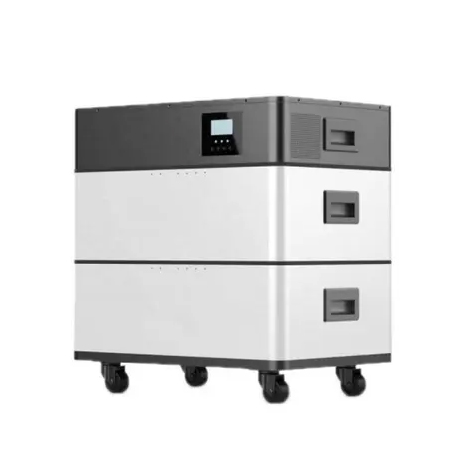

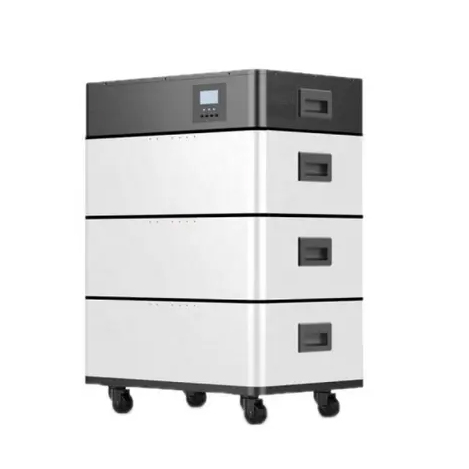

Sodium-ion Stack Battery

Core Product Parameters:

Connect method: 16S10P

Nominal Voltage: 48V

Voltage Operating Range: 32V~63.2V

Nominal Capacity: 100Ah

Nominal Power: 4800Wh

Max. Continuous Charging/Discharging Current: 50A

Charging Temperature: -20℃ ~ 60℃ (-4℉~140℉)

Discharging Temperature: -30℃ ~ 60℃ (-22℉~140℉)

Cycle Life: ≥2000 times

Cooling Method: Forced Air Cooling

Waterproof Rating of Battery Case: IP 55

Weight: 71.9kg

Size: 617*525*173mm

Optional: 48V 100Ah/200Ah/300Ah/400Ah

Sodium ions are the clean energy of the future:

Safe and environmentally friendly
Sodium-ion batteries have less risk of internal short-circuit and thermal runaway, which is safer.
More environmentally friendly than lead-acid, no environmental pollution

Cost-effective
The cycle life of sodium-ion battery is 5-6 times that of lead-acid, with lower life cycle cost.
Supports deep discharge, more usable power.

Efficient and Intelligent
Intelligent and efficient switching of power failure
Maximum support for UPS power supply 20C discharge
