After 500 times of continuous charging and discharging, the battery capacity is not less than 80%.
Discharge cut-off voltage
2.80V±0.025V
Charging cut-off voltage
4.20V±0.025V
Standard discharge current
0.2C
Standard charging current
0.2C
Maximum continuous discharge current
1C
Maximum charging current
1C
Operating temperature
Charge 0~45℃, discharge -20~60℃
Storage temperature
Temperature -20~60℃, humidity 60±25%
Certification
Passed ISO9001 quality system certification, UL, UN, CE, RoHS, REACH and other certifications.
application area
Bluetooth Watch

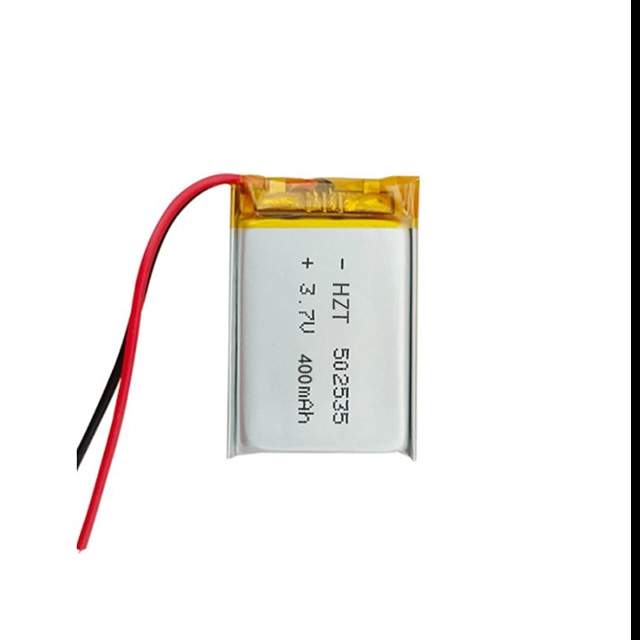

Smart watch lithium-ion battery parameter data
model
502535
Battery Type
Polymer battery
Battery size
(T)5.2mm*(W)25.5mm*(L)35mm
Rated voltage
3.7V
Rated Capacity
400mAh
power
1.48Wh
Cycle life
After 500 times of continuous charging and discharging, the battery capacity is not less than 80%.
Discharge cut-off voltage
2.80V±0.025V
Charging cut-off voltage
4.20V±0.025V
Standard discharge current
0.2C
Standard charging current
0.2C
Maximum continuous discharge current
1C
Maximum charging current
1C
Operating temperature
Charge 0~45℃, discharge -20~60℃
Storage temperature
Temperature -20~60℃, humidity 60±25%
Certification
Passed ISO9001 quality system certification, UL, UN, CE, RoHS, REACH and other certifications.
application area
Bluetooth Watch
Product Features:
1. Customized size: model and capacity are available
2. Quality assurance: UL1642 testing standards are adopted, and the products have passed 100% material testing and equipment testing.
3. Stable performance: Long cycle life: After 500 times of continuous charging and discharging, the battery capacity is not less than 80% of the rated capacity.
4. High safety: The built-in circuit protection board has the characteristics of no fire or explosion under short circuit, overcharge, over discharge, impact, vibration, acupuncture, high temperature and other conditions. Our 18650 batteries all have explosion-proof valves, and the polymer battery cells all use colloidal electricity, which will only bulge at most and will not explode. In addition, our company has a strict quality inspection process to ensure product safety and quality.
Product Features:
1. Customized size: model and capacity are available
2. Quality assurance: UL1642 testing standards are adopted, and the products have passed 100% material testing and equipment testing.
3. Stable performance: Long cycle life: After 500 times of continuous charging and discharging, the battery capacity is not less than 80% of the rated capacity.
4. High safety: The built-in circuit protection board has the characteristics of no fire or explosion under short circuit, overcharge, over discharge, impact, vibration, acupuncture, high temperature and other conditions. Our 18650 batteries all have explosion-proof valves, and the polymer battery cells all use colloidal electricity, which will only bulge at most and will not explode. In addition, our company has a strict quality inspection process to ensure product safety and quality.
Topway has always been adhering to the spirit of "providing customers with endless pursuit of high quality and serving customers wholeheartedly". Topway has advanced manufacturing and testing equipment, scientific quality inspection system and a strong R&D team.
